.308 Win. / 10.8 g (167 gr) AP555

August 6, 2026

Tactical

.308 Win. / 10.8 g (167 gr) AP555

Product information

Crosswind is 4 m/s.

Trajectory

Sight-in	100 m	200 m	300 m	600 m	800 m
100	0 mm	-119 mm	-430 mm	-2978 mm	-6788 mm
300	143 mm	167 mm	0 mm	-2118 mm	-5641 mm
600	496 mm	873 mm	1059 mm	0 mm	-2817 mm

Velocity

0 m	100 m	200 m	300 m	600 m	800 m
855 m/s	786 m/s	718 m/s	589 m/s	472 m/s	369 m/s

Energy

0 m	100 m	200 m	300 m	600 m	800 m
3948 J	3334 J	2782 J	1873 J	1201 J	735 J

Crosswind drift

0 m	100 m	200 m	300 m	600 m	800 m
0 mm	20 mm	85 mm	202 mm	962 mm	1946 mm

Crosswind is 4 m/s.

Test barrel length: 660 mm

Crosswind is 4 m/s.

Trajectory

Sight-in	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd
100	0 in	-4 in	-13 in	-92 in	-206 in	-402 in
300	4 in	5 in	0 in	-65 in	-171 in	-358 in
600	15 in	27 in	33 in	0 in	-84 in	-249 in

Velocity

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd
2805 fps	2597 fps	2392 fps	2002 fps	1642 fps	1320 fps	1052 fps

Energy

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd
2912 ft.-lbs.	2496 ft.-lbs.	2118 ft.-lbs.	1483 ft.-lbs.	997 ft.-lbs.	644 ft.-lbs.	409 ft.-lbs.

Crosswind drift

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd
0 in	1 in	3 in	7 in	31 in	61 in	108 in

Crosswind is 4 m/s.

Test barrel length: 26 in

Lapua’s .308 Winchester AP555 10.8 g / 167 gr

This tactical ammo product is intended for MIL / L.E. use only.

308 Winchester (7.62x51mm) possesses mild recoil, good terminal ballistics, and an effective range of 800 meters (875 yards). This versatility is the reason the caliber remains the most popular choice for use in law enforcement and military sniping applications. Lapua is the world leader in providing match grade projectiles in this caliber, offering several types of Ball, Open-Tip, Armour Piercing (AP), Solid, and Subsonic bullets.

Since the introduction of the legendary D46 cartridge, still in use today, Lapua’s .308 Winchester ammunition is in use by militaries and government agencies throughout the world. Lapua .308 ammunition is not only the world’s most accurate, but the closely matched ballistic trajectories
between different projectile types increases its tactical effectiveness for the operator. .308 Winchester is probably the most versatile centerfire rifle caliber today, and capable of outstanding accuracy.

Find a dealer

6.5 Creedmoor / 9.4 g (145 gr) AP570

August 6, 2026

Tactical

6.5 Creedmoor / 9.4 g (145 gr) AP570

Trajectory data Product description

Product information

Crosswind is 4 m/s.

Trajectory

Sight-in	100 m	200 m	300 m	600 m	800 m	1000 m
100	0 mm	-116 mm	-409 mm	-2637 mm	-5642 mm	-10424 mm
300	136 mm	157 mm	0 mm	-1819 mm	-4550 mm	-9059 mm
600	440 mm	763 mm	909 mm	0 mm	-2125 mm	-6027 mm

Velocity

0 m	100 m	200 m	300 m	600 m	800 m	1000 m
845 m/s	794 m/s	744 m/s	695 m/s	558 m/s	473 m/s	392 m/s

Energy

0 m	100 m	200 m	300 m	600 m	800 m	1000 m
3356 J	2963 J	2602 J	2273 J	1464 J	1052 J	724 J

Crosswind drift

0 m	100 m	200 m	300 m	600 m	800 m	1000 m
0 mm	15 mm	62 mm	145 mm	650 mm	1259 mm	2169 mm

Crosswind is 4 m/s.

Test barrel length: 600 mm

Crosswind is 4 m/s.

Trajectory

Sight-in	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd
100	0 in	-3 in	-13 in	-83 in	-176 in	-320 in
300	4 in	5 in	0 in	-57 in	-142 in	-278 in
600	14 in	24 in	29 in	0 in	-65 in	-183 in

Velocity

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd
2772 fps	2619 fps	2469 fps	2322 fps	1906 fps	1646 fps	1399 fps

Energy

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd
2475 ft.-lbs.	2209 ft.-lbs.	1963 ft.-lbs.	1736 ft.-lbs.	1169 ft.-lbs.	873 ft.-lbs.	630 ft.-lbs.

Crosswind drift

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd
0 in	0 in	2 in	5 in	21 in	40 in	68 in

Crosswind is 4 m/s.

Test barrel length: 24 in

6.5 Creedmoor loaded with the 9.4 g (145 gr) AP570 armor piercing bullet

This cartridge is only intended for Military / Law Enforcement professionals.

The 6.5 Creedmoor has received a lot of attention and continues to grow in popularity also in tactical applications. The 6.5 Creedmoor is a very flat shooting cartridge with excellent ballistics that often exceed the .308 Winchester in windy, long range conditions.

The 6.5 Creedmoor size is similar to the .308 Winchester and it will fit in similar actions and platforms. The 6.5 Creedmoor is a true 1000 m round that can be used with both semi-auto and bolt action rifles. Lapua offers 6.5 Creedmoor ammunition for tactical applications loaded with several
different bullet types, of which the Armour Piercing AP570 weighs 9.4 grams / 145 grains.

Find a dealer

.338 Lapua Mag. / 19.4 g (300 gr) AP529

August 6, 2026

Tactical

.338 Lapua Mag. / 19.4 g (300 gr) AP529

Trajectory data Product description

4318035-338-Lapua-Magnum-cartridge-Armor-Piercing-AP485

Product information

Crosswind is 4 m/s.

Trajectory

Sight-in	100 m	200 m	300 m	600 m	800 m	1000 m	1200 m	1500 m
100	0 mm	-118 mm	-413 mm	-2583 mm	-5391 mm	-9647 mm	-15737 mm	-29738 mm
300	138 mm	157 mm	0 mm	-1757 mm	-4289 mm	-8270 mm	-14090 mm	-27678 mm
600	431 mm	743 mm	878 mm	0 mm	-1946 mm	-5342 mm	-10587 mm	-23297 mm

Velocity

0 m	100 m	200 m	300 m	600 m	800 m	1000 m	1200 m	1500 m
830 m/s	787 m/s	746 m/s	705 m/s	591 m/s	522 m/s	459 m/s	401 m/s	331 m/s

Energy

0 m	100 m	200 m	300 m	600 m	800 m	1000 m	1200 m	1500 m
6682 J	6008 J	5398 J	4821 J	3388 J	2643 J	2044 J	1560 J	1063 J

Crosswind drift

0 m	100 m	200 m	300 m	600 m	800 m	1000 m	1200 m	1500 m
0 mm	13 mm	53 mm	123 mm	536 mm	1014 mm	1685 mm	2490 mm	4010 mm

Crosswind is 4 m/s.

Test barrel length: 680 mm

Crosswind is 4 m/s.

Trajectory

Sight-in	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd	1200 yd	1500 yd
100	0 in	-4 in	-13 in	-81 in	-169 in	-301 in	-486 in	-903 in
300	4 in	5 in	0 in	-56 in	-135 in	-258 in	-435 in	-839 in
600	14 in	24 in	28 in	0 in	-61 in	-165 in	-324 in	-700 in

Velocity

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd	1200 yd	1500 yd
2723 fps	2595 fps	2470 fps	2347 fps	2000 fps	1788 fps	1591 fps	1411 fps	1171 fps

Energy

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd	1200 yd	1500 yd
4934 ft.-lbs.	4481 ft.-lbs.	4060 ft.-lbs.	3666 ft.-lbs.	2662 ft.-lbs.	2128 ft.-lbs.	1685 ft.-lbs.	1325 ft.-lbs.	913 ft.-lbs.

Crosswind drift

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd	1200 yd	1500 yd
0 in	0 in	2 in	4 in	17 in	32 in	54 in	78 in	133 in

Crosswind is 4 m/s.

Test barrel length: 27 in

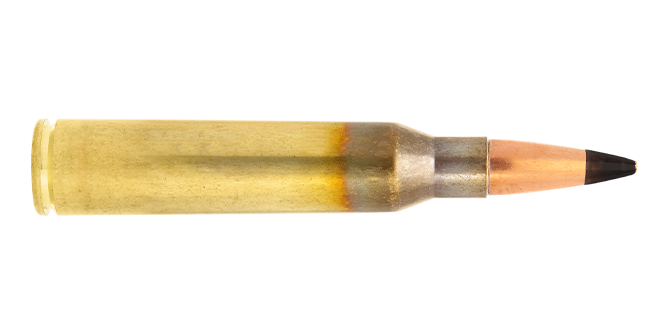

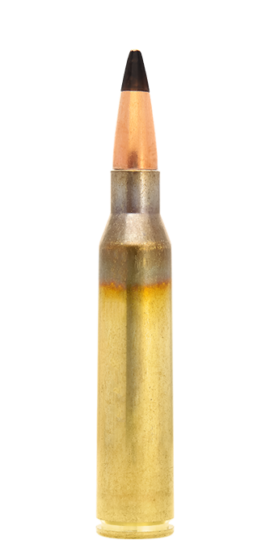

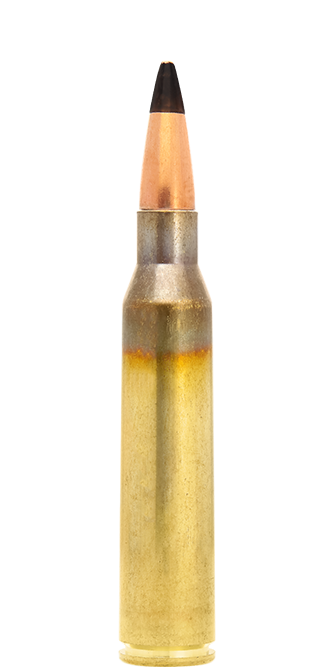

The .338 Lapua Mag. with the 19.4 g (300 gr) Armor Piercing AP529 bullet

The Original .338 Lapua Magnum is currently the best choice for long range sniper applications, extending the operator’s range to well beyond 1,000 meters. This .338 Lapua Magnum cartridge is offered in 19.4 g / 300 gr with the AP529 Armor Piercing projectile, extending accuracy and penetration capabilities at longer ranges.

This tactical ammo product is intended for MIL / L.E. use only.

Find a dealer

.338 Lapua Mag. / 16.1 g (248 gr) AP485

August 6, 2026

Tactical

.338 Lapua Mag. / 16.1 g (248 gr) AP485

Trajectory data Product description

Product information

Crosswind is 4 m/s.

Trajectory

Sight-in	100 m	200 m	300 m	600 m	800 m	1000 m	1200 m	1500 m
100	0 mm	-100 mm	-359 mm	-2356 mm	-5049 mm	-9337 mm	-15813 mm	-31544 mm
300	120 mm	140 mm	0 mm	-1639 mm	-4101 mm	-8139 mm	-14376 mm	-29745 mm
600	393 mm	686 mm	819 mm	0 mm	-1917 mm	-5409 mm	-11098 mm	-25646 mm

Velocity

0 m	100 m	200 m	300 m	600 m	800 m	1000 m	1200 m	1500 m
895 m/s	839 m/s	784 m/s	732 m/s	587 m/s	502 m/s	425 m/s	358 m/s	306 m/s

Energy

0 m	100 m	200 m	300 m	600 m	800 m	1000 m	1200 m	1500 m
6448 J	5662 J	4921 J	4311 J	2776 J	2026 J	1245 J	881 J	754 J

Crosswind drift

0 m	100 m	200 m	300 m	600 m	800 m	1000 m	1200 m	1500 m
0 mm	15 mm	60 mm	140 mm	622 mm	1192 mm	2018 mm	3159 mm	5483 mm

Crosswind is 4 m/s.

Test barrel length: 680 mm

Crosswind is 4 m/s.

Trajectory

Sight-in	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd	1200 yd	1500 yd
100	0 in	-3 in	-11 in	-74 in	-157 in	-287 in	-480 in	-937 in
300	4 in	4 in	0 in	-52 in	-128 in	-250 in	-436 in	-882 in
600	12 in	22 in	26 in	0 in	-59 in	-164 in	-332 in	-753 in

Velocity

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd	1200 yd	1500 yd
2936 fps	2767 fps	2603 fps	2444 fps	2003 fps	1739 fps	1498 fps	1282 fps	1053 fps

Energy

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd	1200 yd	1500 yd
4755 ft.-lbs.	4223 ft.-lbs.	3737 ft.-lbs.	3295 ft.-lbs.	2213 ft.-lbs.	1667 ft.-lbs.	1237 ft.-lbs.	907 ft.-lbs.	611 ft.-lbs.

Crosswind drift

0 yd	100 yd	200 yd	300 yd	600 yd	800 yd	1000 yd	1200 yd	1500 yd
0 in	0 in	2 in	4 in	19 in	36 in	61 in	95 in	166 in

Crosswind is 4 m/s.

Test barrel length: 27 in

The .338 Lapua Mag. loaded with the 16.1 g (248 gr) armor piercing AP485 bullet

.338 Lapua Magnum fills the gap between 7.62mm and .50 caliber sniper systems. The .338 Lapua Magnum sniper systems are currently employed by several armed forces throughout the world. The trajectories of Lapua bullets are tailored to match, so there is no need to change sight setup when changing the cartridge type. Some cartridges are hermetic, optional for all products. All .338 Lapua Magnum cartridges are packed in M2A1 steel cases.

This tactical ammo product is intended for MIL / L.E. use only.
