.338 Lapua Mag. / 16.2 g (250 gr) Scenar
Product information
Product trajectory
Impact point above or below line of sight (Scope 40 mm above bore line)
Metric
Imperial
Crosswind is 4 m/s.
Trajectory
| Sight-in | 100 m | 200 m | 300 m | 600 m | 800 m | 1000 m | 1200 m | 1500 m |
|---|---|---|---|---|---|---|---|---|
| 100 | 0 mm | -99 mm | -353 mm | -2265 mm | -4781 mm | -8658 mm | -14361 mm | -27853 mm |
| 300 | 118 mm | 137 mm | 0 mm | -1559 mm | -3840 mm | -7481 mm | -12948 mm | -26085 mm |
| 600 | 361 mm | 628 mm | 746 mm | 0 mm | -1761 mm | -4882 mm | -9829 mm | -22184 mm |
Velocity
| 0 m | 100 m | 200 m | 300 m | 600 m | 800 m | 1000 m | 1200 m | 1500 m |
|---|---|---|---|---|---|---|---|---|
| 890 m/s | 841 m/s | 794 m/s | 748 m/s | 618 m/s | 539 m/s | 466 m/s | 399 m/s | 324 m/s |
Energy
| 0 m | 100 m | 200 m | 300 m | 600 m | 800 m | 1000 m | 1200 m | 1500 m |
|---|---|---|---|---|---|---|---|---|
| 6416 J | 5735 J | 5108 J | 4533 J | 3097 J | 2354 J | 1757 J | 1289 J | 852 J |
Crosswind drift
| 0 m | 100 m | 200 m | 300 m | 600 m | 800 m | 1000 m | 1200 m | 1500 m |
|---|---|---|---|---|---|---|---|---|
| 0 mm | 13 mm | 53 mm | 122 mm | 538 mm | 1025 mm | 1724 mm | 2682 mm | 4715 mm |
Crosswind is 4 m/s.
Crosswind is 4 m/s.
Trajectory
| Sight-in | 100 yd | 200 yd | 300 yd | 600 yd | 800 yd | 1000 yd | 1200 yd | 1500 yd |
|---|---|---|---|---|---|---|---|---|
| 100 | 0 in | -3 in | -11 in | -71 in | -149 in | -268 in | -440 in | -836 in |
| 300 | 4 in | 5 in | 0 in | -49 in | -120 in | -232 in | -397 in | -781 in |
| 600 | 12 in | 21 in | 25 in | 0 in | -55 in | -150 in | -298 in | -658 in |
Velocity
| 0 yd | 100 yd | 200 yd | 300 yd | 600 yd | 800 yd | 1000 yd | 1200 yd | 1500 yd |
|---|---|---|---|---|---|---|---|---|
| 2920 fps | 2774 fps | 2632 fps | 2493 fps | 2099 fps | 1855 fps | 1629 fps | 1419 fps | 1143 fps |
Energy
| 0 yd | 100 yd | 200 yd | 300 yd | 600 yd | 800 yd | 1000 yd | 1200 yd | 1500 yd |
|---|---|---|---|---|---|---|---|---|
| 4723 ft.-lbs. | 4272 ft.-lbs. | 3844 ft.-lbs. | 3449 ft.-lbs. | 2445 ft.-lbs. | 1911 ft.-lbs. | 1472 ft.-lbs. | 1117 ft.-lbs. | 726 ft.-lbs. |
Crosswind drift
| 0 yd | 100 yd | 200 yd | 300 yd | 600 yd | 800 yd | 1000 yd | 1200 yd | 1500 yd |
|---|---|---|---|---|---|---|---|---|
| 0 in | 0 in | 2 in | 4 in | 16 in | 30 in | 50 in | 78 in | 136 in |
Crosswind is 4 m/s.

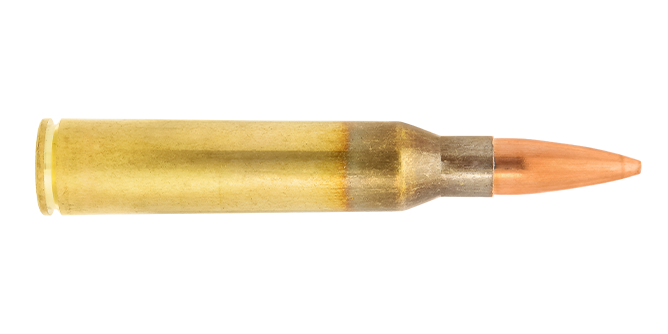

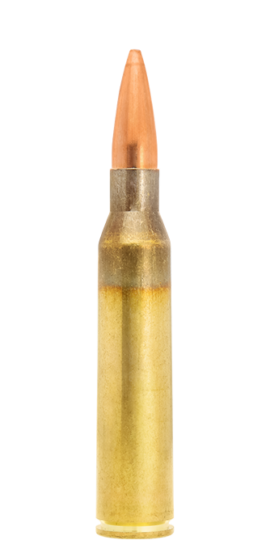

The .338 Lapua Magnum factory-loaded with the 16.2 g (250 gr) Scenar bullet
The .338 Lapua Magnum cartridge, or .338 Lapua Mag or .338 LM for short, is the ultimate centerfire rifle cartridge, purpose-built specifically for extremely long ranges. While the .338 LM round has a strong military reputation, it has been used increasingly by both long range hunters and sport shooters in disciplines such as ELR. The Scenar projectile is an Open Tip Match projectile, perfectly suited for target and tactical ammunition.
