6.5 Creedmoor / 7.8 g (120 grains) TRX
Product information
Product trajectory
Impact point above or below line of sight (Scope 40 mm above bore line)
Crosswind is 4 m/s.
Trajectory
| Sight-in | 100 m | 200 m | 300 m | 600 m |
|---|---|---|---|---|
| 100 | 0 mm | -109 mm | -405 mm | -2898 mm |
| 178 GEE | 40 mm | -30 mm | -286 mm | -2660 mm |
Velocity
| 0 m | 100 m | 200 m | 300 m | 600 m |
|---|---|---|---|---|
| 873 m/s | 799 m/s | 727 m/s | 656 m/s | 471 m/s |
Energy
| 0 m | 100 m | 200 m | 300 m | 600 m |
|---|---|---|---|---|
| 2972 J | 2493 J | 2059 J | 1677 J | 866 J |
Crosswind drift
| 0 m | 100 m | 200 m | 300 m | 600 m |
|---|---|---|---|---|
| 0 mm | 21 mm | 87 mm | 208 mm | 995 mm |
Crosswind is 4 m/s.
Crosswind is 4 m/s.
Trajectory
| Sight-in | 100 yd | 200 yd | 300 yd | 600 yd |
|---|---|---|---|---|
| 100 | 0 in | -3 in | -13 in | -90 in |
| 192 PBR | 2 in | 0 in | -8 in | -81 in |
Velocity
| 0 yd | 100 yd | 200 yd | 300 yd | 600 yd |
|---|---|---|---|---|
| 2864 fps | 2643 fps | 2425 fps | 2209 fps | 1640 fps |
Energy
| 0 yd | 100 yd | 200 yd | 300 yd | 600 yd |
|---|---|---|---|---|
| 2192 ft.-lbs. | 1867 ft.-lbs. | 1571 ft.-lbs. | 1304 ft.-lbs. | 719 ft.-lbs. |
Crosswind drift
| 0 yd | 100 yd | 200 yd | 300 yd | 600 yd |
|---|---|---|---|---|
| 0 in | 1 in | 3 in | 7 in | 32 in |
Crosswind is 4 m/s.

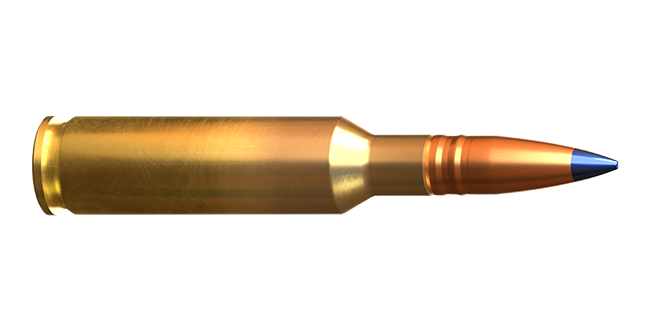

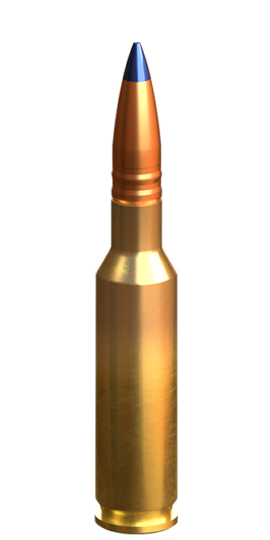

The new 6.5 Creedmoor TRX® hunting cartridge by Lapua
The 6.5 Creedmoor has grown to the one of the most popular all-around calibers in the world for both long-range target shooters and medium game hunters.
Loaded with Lapua’s new 6,5 mm 7,8 g / 120 gr TRX® solid-copper bullet, this expanding hunting cartridge offers exceptional ballistics, devastating terminal performance and unbelievable accuracy. The new polymer tip design delivers pinpoint precision with a high BC, rapid and controlled expansion, unmatched weight retention and energy transfer.
Lapua TRX® Ammunition features the highest quality components recognized by the world’s best precision shooting enthusiasts, including Lapua cartridge cases and Vihtavuori propellants. All Lapua TRX® ammunition is assembled with patented Air Lock® water-proof technology, protecting your powder and primer from harmful moisture and other elements detrimental to ignition.
