Target
6.5×47 Lapua / 8.0 g (123 gr) Scenar
Product information
Product trajectory
Impact point above or below line of sight (Scope 40 mm above bore line)
Metric
Imperial
Crosswind is 4 m/s.
Trajectory
| Sight-in | 100 m | 200 m | 300 m | 600 m | 800 m | 1000 m |
|---|---|---|---|---|---|---|
| 100 | 0 mm | -116 mm | -412 mm | -2720 mm | -5919 mm | -11138 mm |
| 300 | 137 mm | 159 mm | 0 mm | -1896 mm | -4819 mm | -9763 mm |
| 600 | 453 mm | 791 mm | 948 mm | 0 mm | -2292 mm | -6603 mm |
Velocity
| 0 m | 100 m | 200 m | 300 m | 600 m | 800 m | 1000 m |
|---|---|---|---|---|---|---|
| 850 m/s | 792 m/s | 736 m/s | 681 m/s | 532 m/s | 444 m/s | 362 m/s |
Energy
| 0 m | 100 m | 200 m | 300 m | 600 m | 800 m | 1000 m |
|---|---|---|---|---|---|---|
| 2890 J | 2510 J | 2164 J | 1856 J | 1133 J | 787 J | 526 J |
Crosswind drift
| 0 m | 100 m | 200 m | 300 m | 600 m | 800 m | 1000 m |
|---|---|---|---|---|---|---|
| 0 mm | 16 mm | 67 mm | 158 mm | 716 mm | 1394 mm | 2409 mm |
Crosswind is 4 m/s.
Crosswind is 4 m/s.
Trajectory
| Sight-in | 100 yd | 200 yd | 300 yd | 600 yd | 800 yd | 1000 yd |
|---|---|---|---|---|---|---|
| 100 | 0 in | -3 in | -13 in | -85 in | -183 in | -339 in |
| 300 | 4 in | 5 in | 0 in | -59 in | -149 in | -297 in |
| 600 | 14 in | 25 in | 30 in | 0 in | -70 in | -198 in |
Velocity
| 0 yd | 100 yd | 200 yd | 300 yd | 600 yd | 800 yd | 1000 yd |
|---|---|---|---|---|---|---|
| 2790 fps | 2616 fps | 2446 fps | 2281 fps | 1826 fps | 1553 fps | 1301 fps |
Energy
| 0 yd | 100 yd | 200 yd | 300 yd | 600 yd | 800 yd | 1000 yd |
|---|---|---|---|---|---|---|
| 2134 ft.-lbs. | 1876 ft.-lbs. | 1640 ft.-lbs. | 1426 ft.-lbs. | 914 ft.-lbs. | 661 ft.-lbs. | 464 ft.-lbs. |
Crosswind drift
| 0 yd | 100 yd | 200 yd | 300 yd | 600 yd | 800 yd | 1000 yd |
|---|---|---|---|---|---|---|
| 0 in | 1 in | 2 in | 5 in | 23 in | 44 in | 75 in |
Crosswind is 4 m/s.

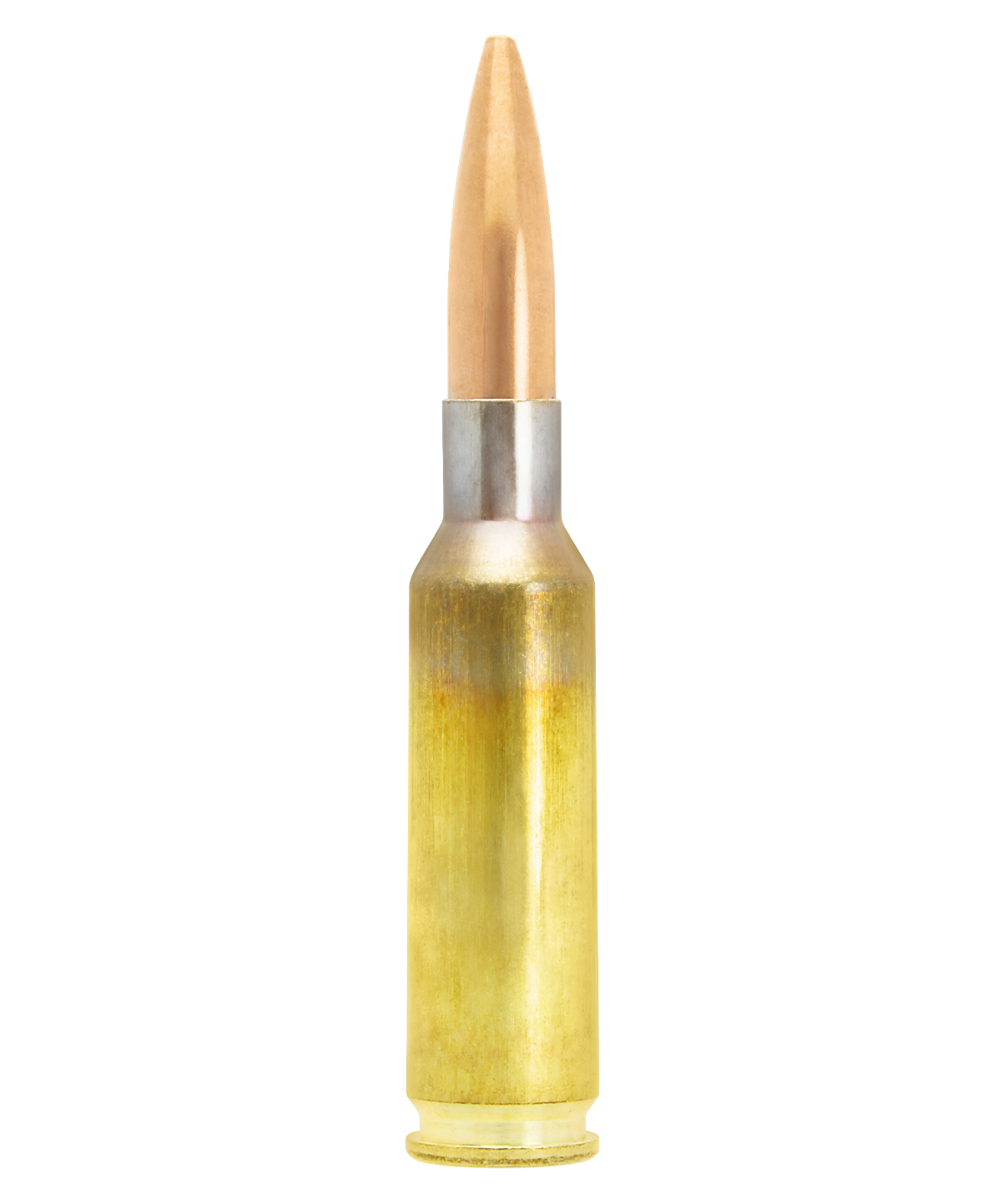

The factory-loaded 6.5×47 Lapua with the 8.0 g (123 gr) Scenar OTM projectile
The 6.5×47 Lapua is a cartridge designed for serious competition shooting, specifically for 300 meter matches. The chamber and throat dimensions are optimized for the Lapua Scenar bullets. After its introduction in 2005, shooters of other disciplines quickly saw the advantages of the 6.5×47 Lapua and began using it in several other venues as well. Fast, incredibly accurate and having light recoil, the 6.5×47 Lapua is an ideal cartridge for hunting fields as well as competitive venues.
